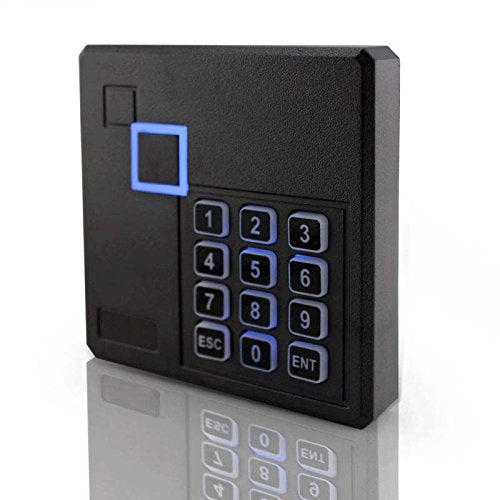

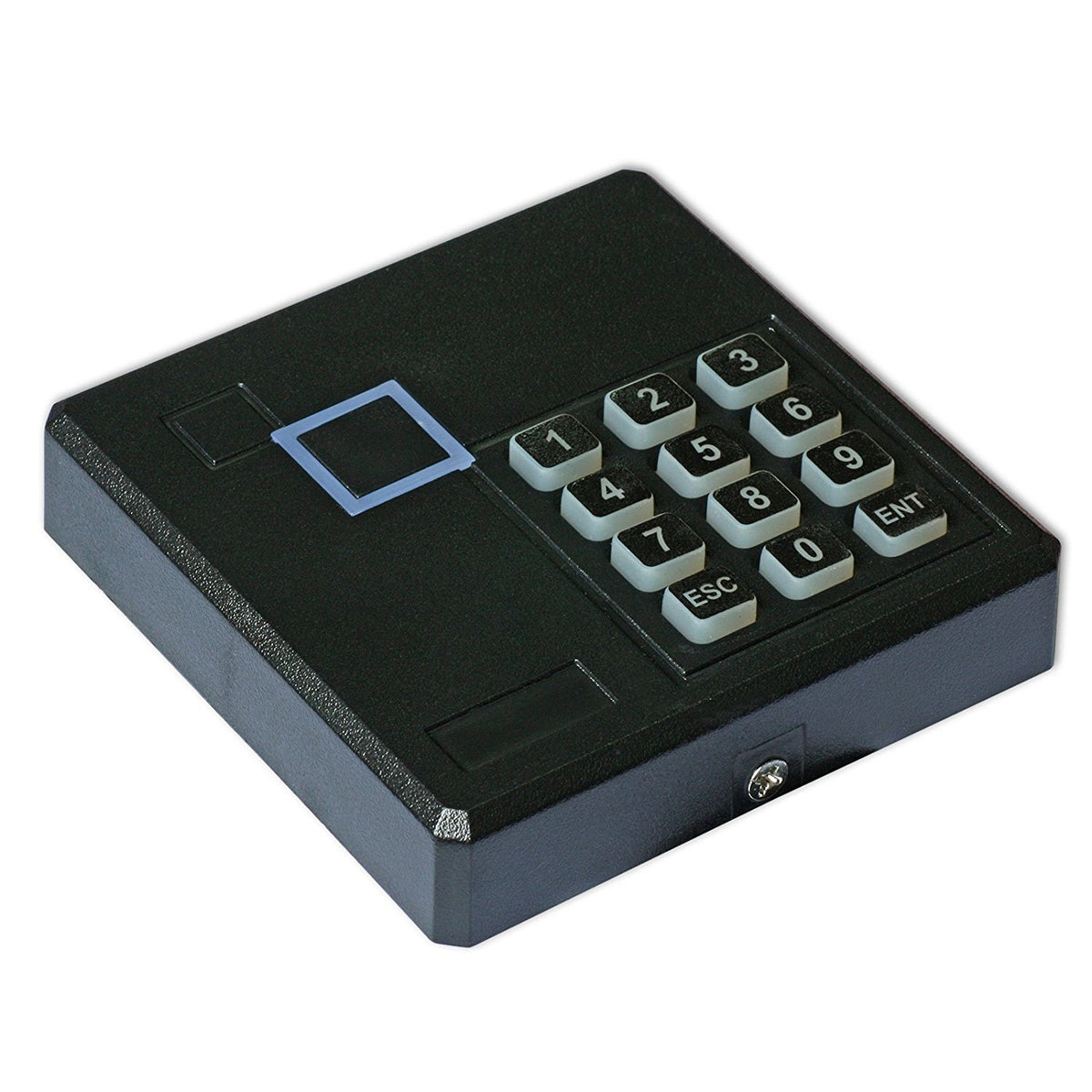

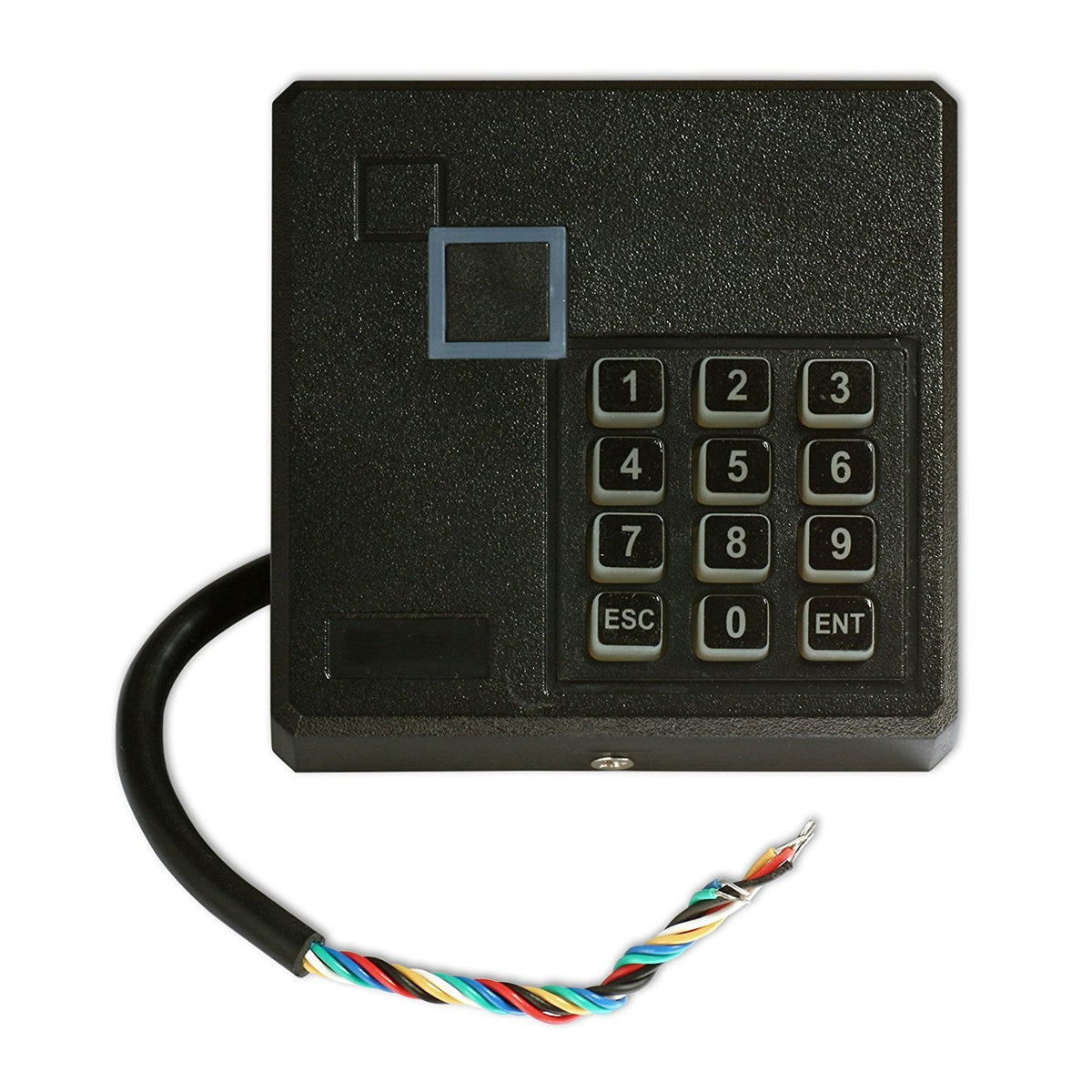

MENGQI-CONTROL Proximity RFID ID Card Door Access Control Keypad Reader 125KHz Wiegand 26/34 Bit Black Color

Brand: MENGQI-CONTROL

Color: Black

Features:

• Type: EM RFID 125khz Keypad reader, Can't work alone, Normally work with Control board to build completely Security Access Control System.
• Install working in in-door environment, can't expose to rain( If need Water Proof one, Pls contact us)
• Standard wiegand 26 and 34 bit output format for connect to a controller.
• Card Type: 125khz EM-RFID Card/Fob, (Can't support encrypted cards, such as HID, Cobra, APCiK etc)
• Reading range: 3-15 cm, Built-in LED and Loud Speaker (Buzzer)

model number: 125khz-RFID Keypad Reader

Part Number: 125khz-RFID Keypad Reader

Details: Package Including:
1 X RFID ID Card Reader

125Khz 12V RFID Keypad Reader Features:
Brand New and High Quality
Can't work alone,need work with access control panel
Supports Card, PIN, Card + PIN
External buzzer control
Durable keytop
Built-in speaker
Specifications:
Material: PVC
Intput Voltage: DC 9-16V
Operating current: ≤120mA
Card Type:EM-ID Card (Can't support some encrypted cards, such as HID, Cobra, APCiK etc)
Reading range: 3~15 cm
Output Mode : Standard wiegand 26 bit format

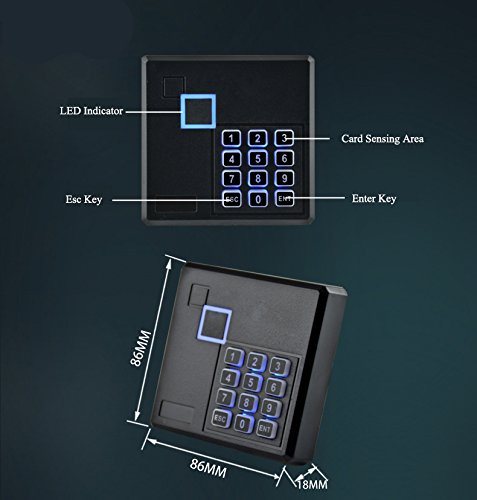

Size: 86*86*18 mm/ 3-3/8" (W) x 3-3/8"(H) x 3/4" (D) inch

EAN: 0732130471022

Package Dimensions: 5.6 x 3.7 x 1.7 inches
